Folding gates are designed to save space and time. The quick open/close cycle helps to accurately control access at the busiest traffic environments. Folding Gates do not require as much room as other gates therefore saving valuable space for other uses. The compact installation allows effective security installations in the most confined spaces.
Folding gates are available in a variety of models to suit many applications and budgets. The gates have nearly limitless design options to match any project exterior. Factory assembly and testing ensures a smooth and reliable installation.
The PDTT SpeedGate
With an open or close cycle-time of less than 7 seconds, the bi-fold SpeedGate ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
Features
- Drive motor secured inside column
- Top track for add on security
- Minimal footprint
- Variable frequency drive
Applications
- Corrections
- Police
- Courthouses
Options
- Tailgate detection and anti-tailgate
- Traffic lights (bidirectional)
- Uninterruptible power supply (UPS)
- Safety photo cell
- Strobe light
- Detection loops
- Cold-weather kit
- Ventilation kit
Technical Specifications
| Technical Data | PDTT Series Specifications |
|---|---|
| Max Height | 16' |
| Max Width | 24' |
| Opening Speed | 7 seconds |
| Finish | Hot dip galvanized, Powder coat options |
| Power Requirements | Voltage 208-240 V, Frequency 60 HZ, Current 15 AMP dedicated circuits, Single phase |
| Hydraulic Option | Yes |
| Battery Back-up | Add on |
Listed to UL 325 (class 1, 2, 3 & 4)
Downloads
- PDTT SpeedGate - Brochure (PDF 0.5MB)
- PDTT SpeedGate - Specifications (PDF 0.2MB)
- PDTT SpeedGate - Drawing (PDF 1MB)
- PDTT SpeedGate Installation Guide (PDF 2.2MB)
- PDTT SpeedGate - CAD Drawing 1 of 6 (DWG 2.35MB)
- PDTT SpeedGate - CAD Drawing 2 of 6 (DWG 4.49MB)
- PDTT SpeedGate - CAD Drawing 3 of 6 (DWG 2.09MB)
- PDTT SpeedGate - CAD Drawing 4 of 6 (DWG 1.95MB)
- PDTT SpeedGate - CAD Drawing 5 of 6 (DWG 1.57MB)
- PDTT SpeedGate - CAD Drawing 6 of 6 (DWG 0.12MB)
- Speedgate Install & Maintenance Manual

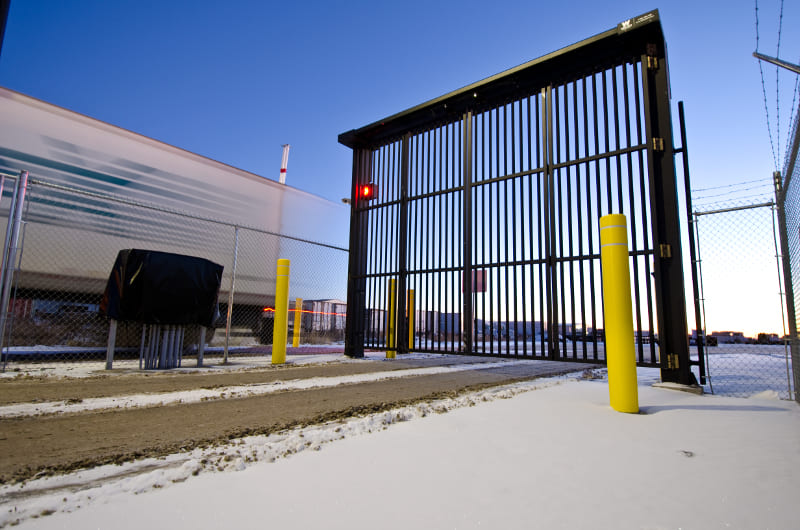

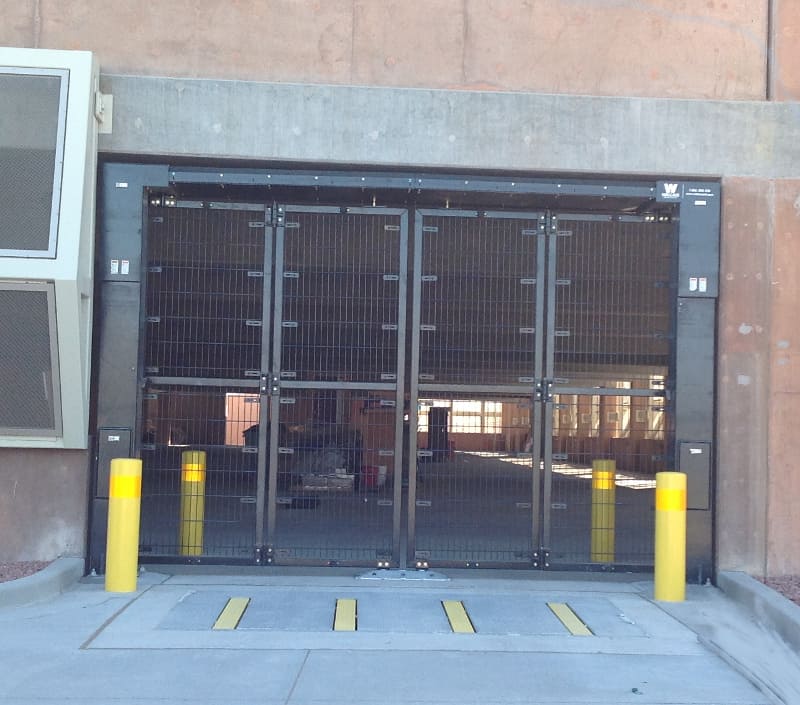

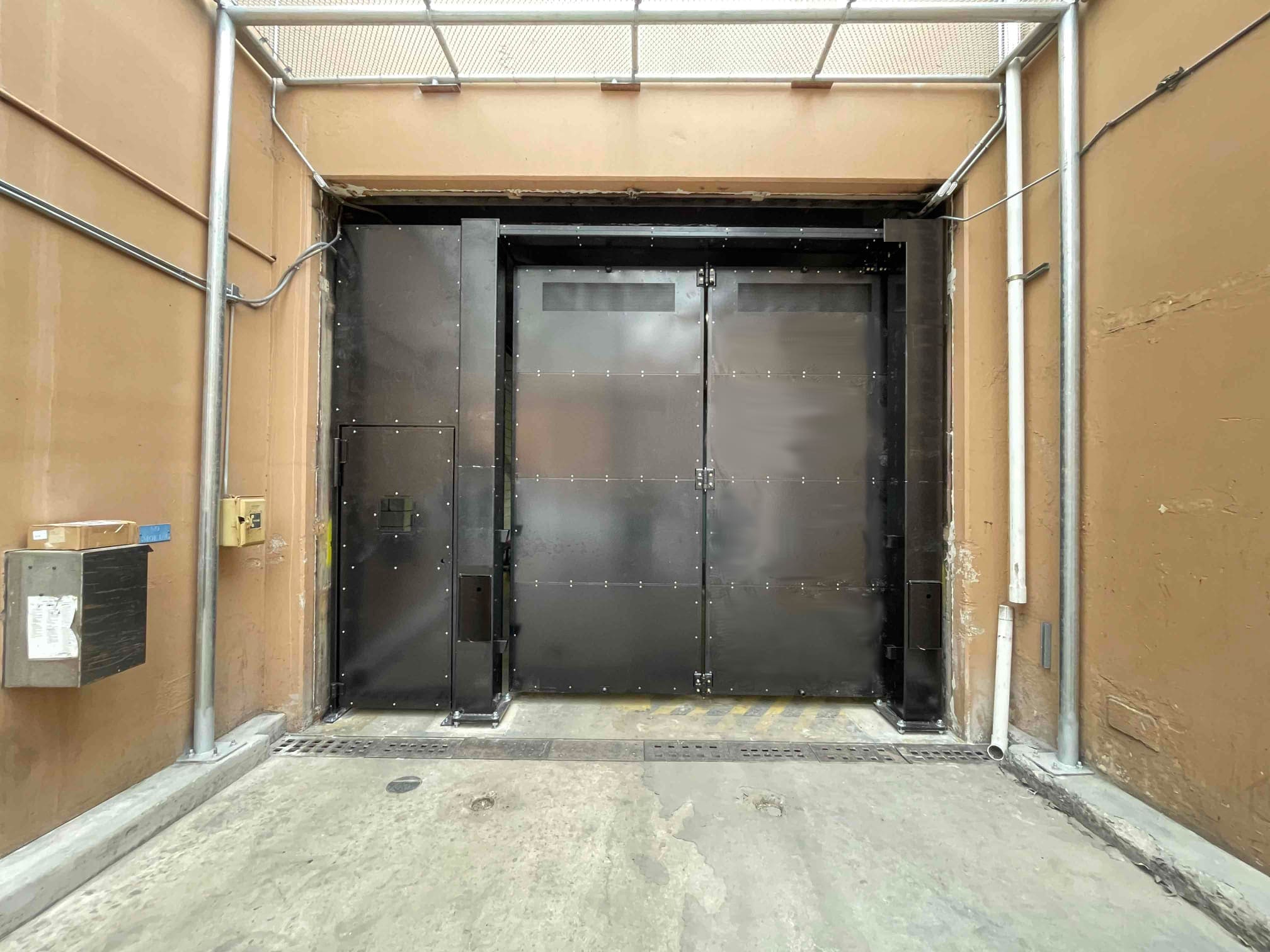

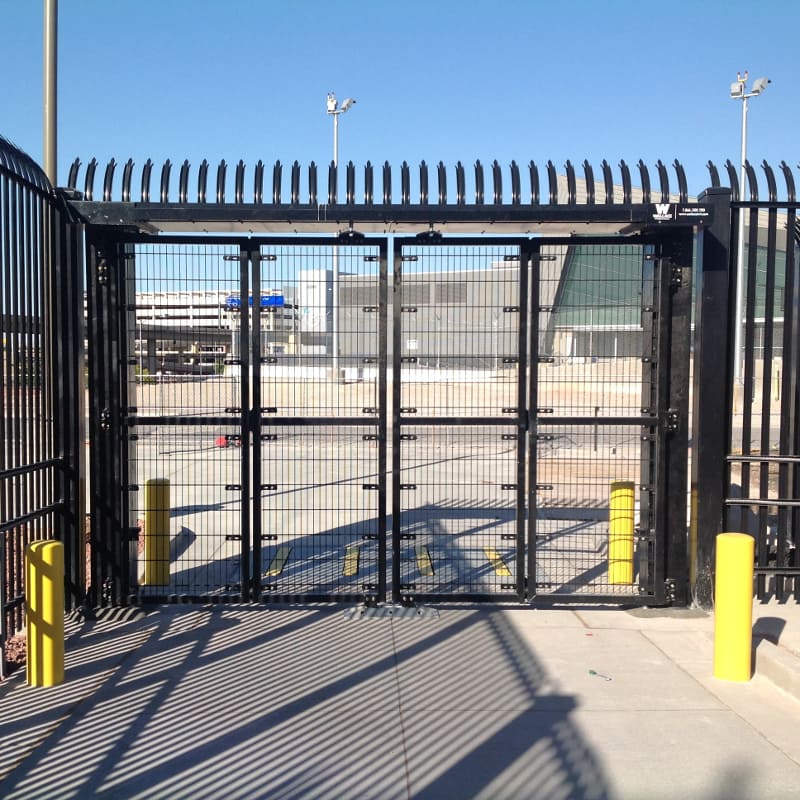

Gallery
PDTT Series Videos
SpeedGate Top Track
The Top Track SpeedGate has an open or close cycle-time of less than 7 seconds. This ensures minimal site exposure; virtually eliminating tailgating, reducing idling time and in turn reducing emissions.
