Cantilever sliding gates provide a security solution for a variety of different applications. Cantilever sliding gates do not rely on any surface mounted rail or track, therefore ease of operation and maintenance is dramatically improved. No ground track also means that the gate can accommodate heavy traffic in continuous duty applications.
Modular construction allows for quick, economical delivery and cost effective future serviceability.
The rack and pinion drive is quiet, and provides a secure entrance while maximizing the life of the gate. Sealed bearings in the rollers and nylon polyamide rack and pinion gears eliminate the maintenance requirements associated with conventional chain drive operators. Straight forward sizing allows for quick shipping.

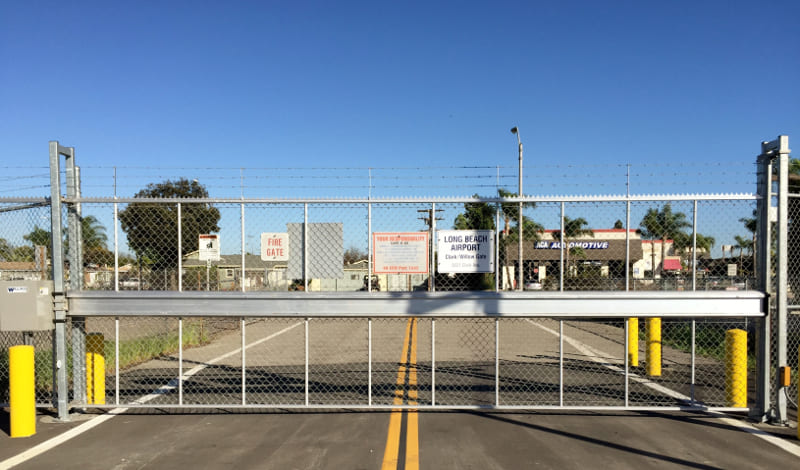

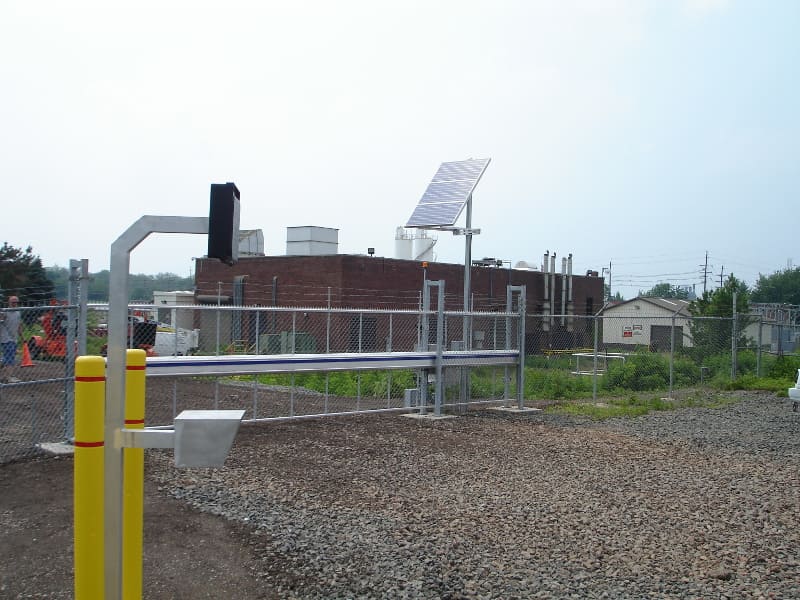

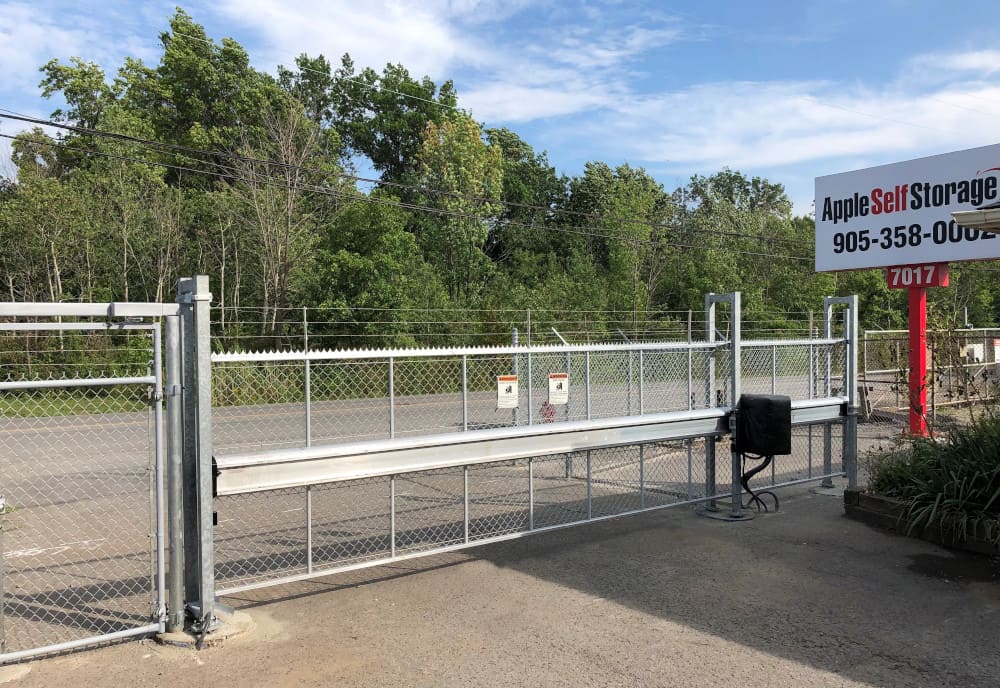

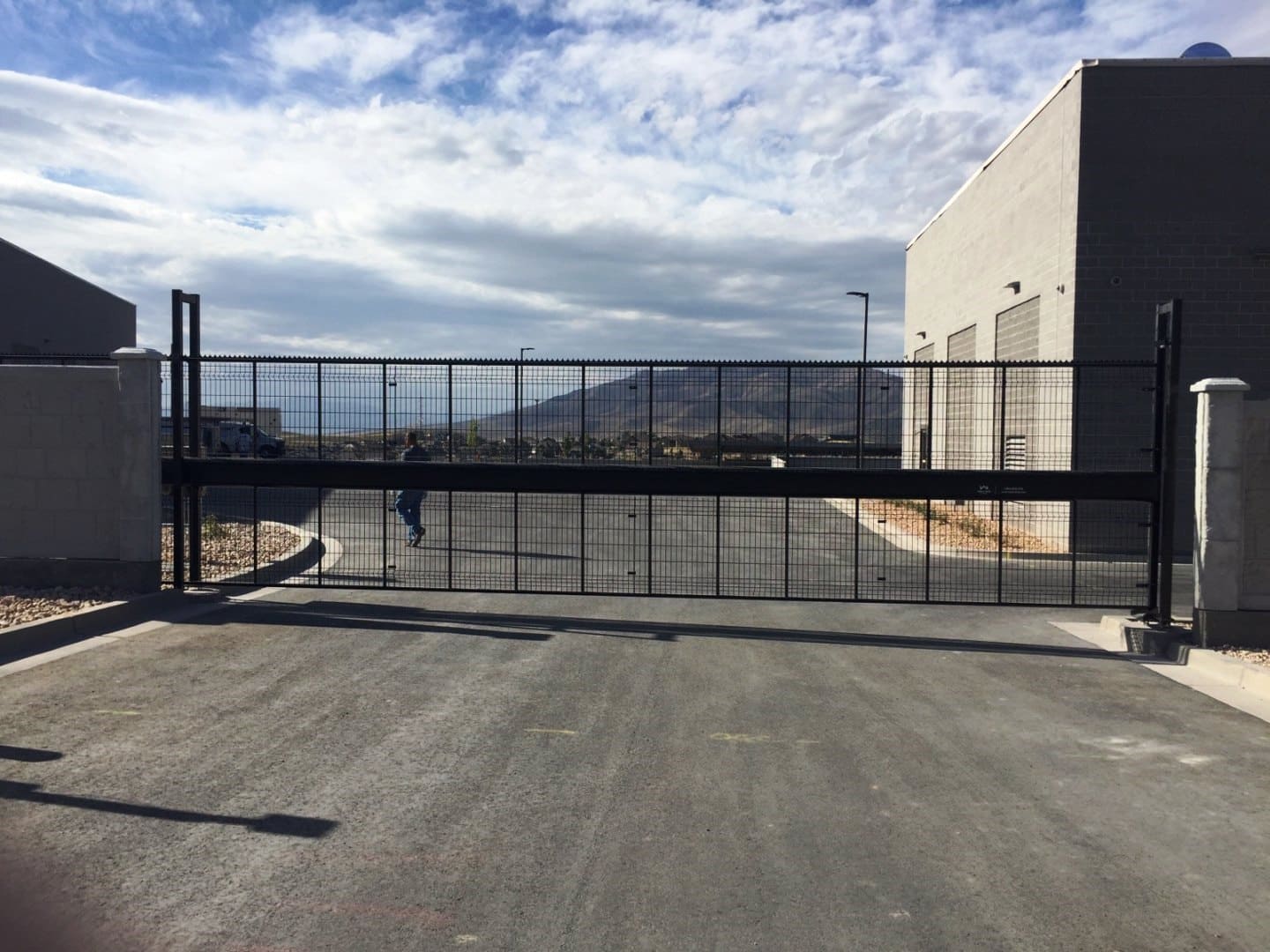

The Alpha Cantilever Sliding Gate
The Alpha Gate, manufactured with an internal tensioned aluminum beam, is known for its engineered strength and durability. Wallace and Wallace has designed the chain-linked Alpha Gate to provide strength, security and protection in high traffic commercial applications.
The modular aluminum gate is powered by our innovative Kinetic motor. This motor is a key component, with its rack and pinion drive, providing a smooth and quiet operation. The variable-speed drive maximizes the gate hardware life, eliminating the instant start-and-stop motions of traditional, constant-speed motors.
Features
- Rack and pinion drive
- Concealed nylon rollers
- Anti-climb top rail
Applications
- Airports
- Seaports
- Commercial facilities
- Water treatment facilities
- Public transportation
Options
- Traffic lights (bi-directional)
- Thru-beam safety photo cell
- Strobe light
- Vehicle detector loops/relays
- Cold-weather kit
Technical Specifications
Technical Data | Alpha Specification |
---|---|
Infill Options | Chain link, Welded wire |
Max Height* | 8' |
Max Width | 30' |
Opening Speed | 1' per second or 2' per second |
Finish | Hot dip galvanized/ mill 1 finish aluminum, Powder coat options |
Power Requirements | Voltage 115-230 V, Frequency 50-60 HZ, Current 15 AMP dedicated circuits |
ASTM F2200-02 compliant, UL 325 listed (class 1, 2, 3 & 4)
* 1 foot high (3 rows) barbed wire comes standard on all height and width combinations.
Downloads
- Alpha Sliding Gate - Brochure (PDF 0.6MB)
- Alpha Sliding Gate - Specifications (Word 91KB)
- Alpha Sliding Gate - Specifications (PDF)
- Alpha Sliding Gate - Drawing (PDF 0.84MB)
- Alpha Sliding Gate - Double Drawing (PDF 1.6MB)
- Alpha Sliding Gate / Kinetic Installation & Maintenance Manual (PDF 2MB)
- Alpha Gate Mechanical Manual
- Alpha Sliding Gate - CAD Drawing 1 of 5 (DWG 2.5MB)
- Alpha Sliding Gate - CAD Drawing 2 of 5 (DWG 0.6MB)
- Alpha Sliding Gate - CAD Drawing 3 of 5 (DWG 0.7MB)
- Alpha Sliding Gate - CAD Drawing 4 of 5 (DWG 2.3MB)
- Alpha Sliding Gate - CAD Drawing 5 of 5 (DWG 4.8MB)
- Alpha Kinetic Drive System Brochure
- Automatic Gate Lookbook
Alpha Gate Videos
The Alpha gate is designed to close single openings of up to 80 feet and the system is UL 325 listed. The modular construction allows for efficient delivery time and ensures that it is easy to unload on site. The gate comes with mounting posts and all required hardware. The Alpha gate stands out from other sliding gates with its integrated rack and pinion drive.
Features and Benefits of our Alpha & Delta Gates
Open and close cycle of our Alpha Gate
Close up of our rack and pinion drive system
Alpha Sliding Gate Withstands Ramming Attack | Wallace and Wallace Gates
Alpha Cantilever Gate | Wallace and Wallace Gates
