Rampart Welded Wire
When it comes to form and function Rampart Welded Wire has you secured. Cutting through welded mesh is time-consuming and difficult. Rampart Welded Wire adds beauty and elegance to every property it protects. For rampart welded wire projects outside of Manitoba, Canada, please contact our sister company, Wallace Perimeter Security.

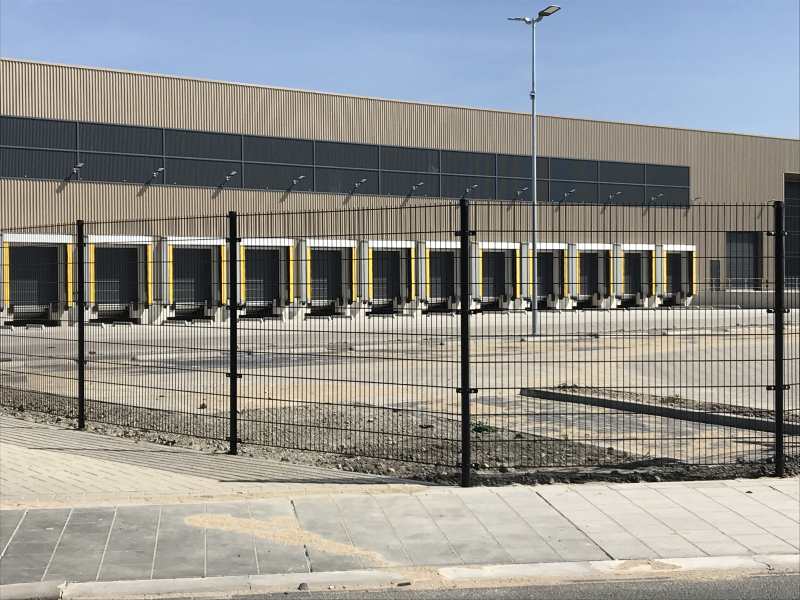

Rampart 280 - Double Wire Fencing
RAMPART 280 panels are a level up from Rampart 284. This double-wire panel is the right choice when there is a need to deter determined trespassers. Its thicker gauge withstands cutting tools while blending into the landscape and not detracting from the surrounding landscape.
Recommended Application
- Airports
- Parking facilities
- Commercial and industrial properties
- High risk areas
Technical Specifications
| Technical Data | Rampart 280 Specification |
|---|---|
| Mesh Opening | 2" x 8" (50 mm x 200 mm) |
| Gauge of Horizontal Wire | 2 x 0 GA (8 mm) |
| Gauge of Vertical Wire | 1 x 4 GA (6 mm) |
| Standard Height | 4', 6', 8' (1230 mm, 1830 mm, 2430 mm) |
| Standard Length | 8'2" (2508 mm) |
| Finish | Galvanized; Powder Coat |
Downloads
- Rampart Welded Wire - Brochure (PDF 0.3MB)
- Welded Wire Lookbook
- Bracket Brochure
- Welded Wire Inserts Brochure
- Rampart 280 - Panel Drawing (PDF 0.1MB)
- Rampart 280 - Round Post and Bracket Drawing (0.1MB)
- Rampart 280 - 2" Square Post and Bracket Drawing (0.1MB)
- Rampart 280 - 3" Square Post and Bracket Drawing (0.1MB)
- Rampart 280 - Specification (PDF .28MB)
